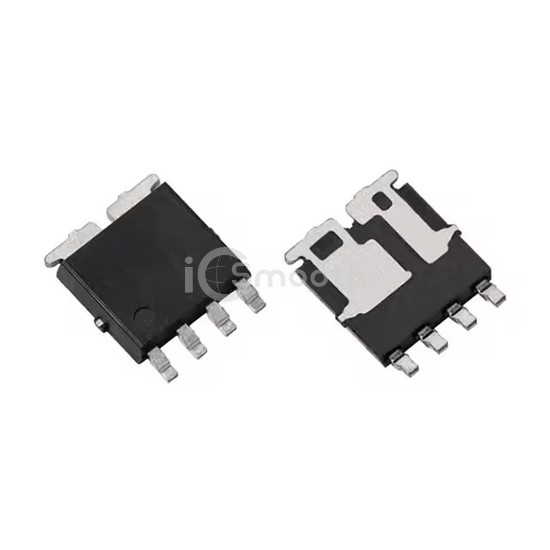

Name: SQJ202EP-T2_GE3
Brand: Vishay Siliconix
SKU: SQJ202EP-T2_GE3
Price: 1.39 USD
Availability: InStock

REF: SQJ202EP-T2_GE3 Vishay Siliconix

SQJ202EP-T2_GE3

Vishay Siliconix

DUAL N-CHANNEL 12-V (D-S) 175C M

SQJ202EP-T2_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 12-V (D-S) 175C M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc), 48W (Tc).

Datasheet Request a Quote

In Stock: 5,025

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	20A (Tc), 60A (Tc)
Rds On (Max) @ Id, Vgs	6.5mOhm @ 15A, 10V, 3.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V, 54nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	975pF @ 6V, 2525pF @ 6V
Power - Max	27W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual Asymmetric
