Name: SQJ182EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ182EP-T1_GE3
Price: 1.66 USD
Availability: InStock

REF: SQJ182EP-T1_GE3 Vishay Siliconix

SQJ182EP-T1_GE3

Vishay Siliconix

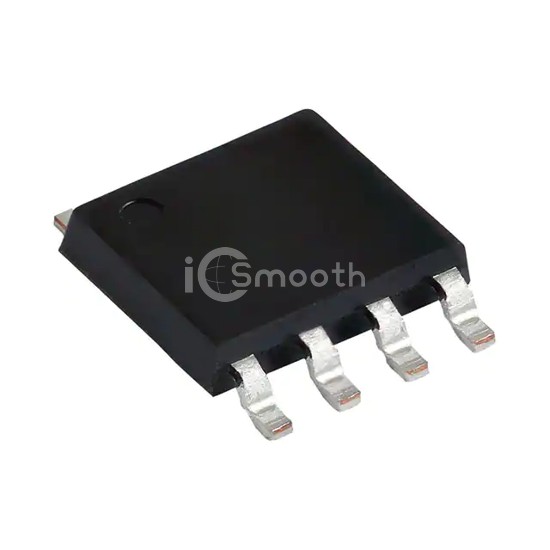

AUTOMOTIVE N-CHANNEL 80 V (D-S)

SQJ182EP-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE N-CHANNEL 80 V (D-S). Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8.

Request a Quote

In Stock: 5,603

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	210A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	96 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5392 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	395W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
