Name: SQJ123ELP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ123ELP-T1_GE3
Price: 1.66 USD
Availability: InStock

REF: SQJ123ELP-T1_GE3 Vishay Siliconix

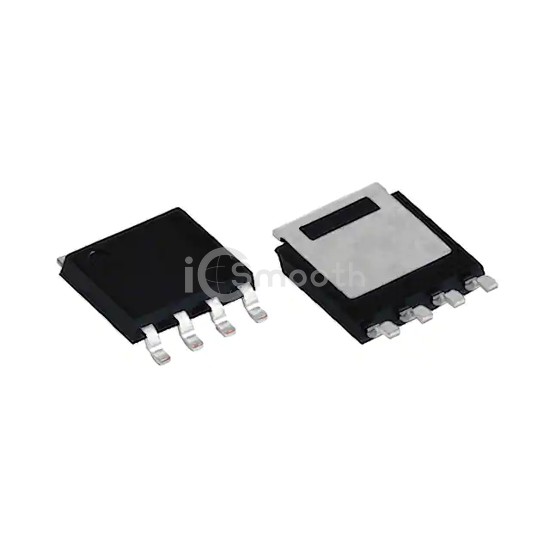

SQJ123ELP-T1_GE3

Vishay Siliconix

AUTOMOTIVE P-CHANNEL 12 V (D-S)

SQJ123ELP-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE P-CHANNEL 12 V (D-S). Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 4,249

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	238A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	4mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	11680 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
