Name: SQD50P06-15L_T4GE3
Brand: Vishay Siliconix
SKU: SQD50P06-15L_T4GE3
Price: 1.72 USD
Availability: InStock

REF: SQD50P06-15L_T4GE3 Vishay Siliconix

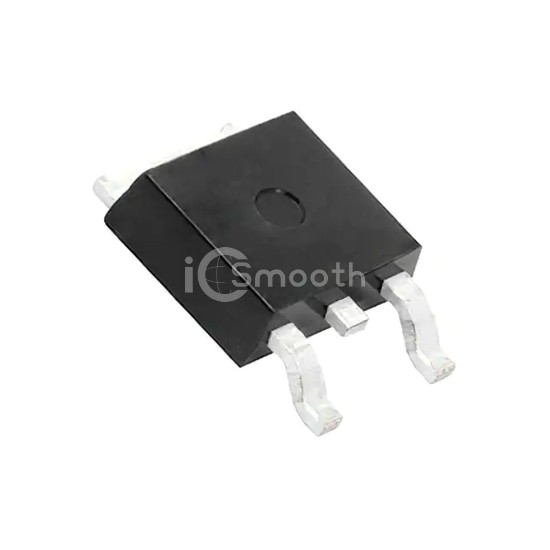

SQD50P06-15L_T4GE3

Vishay Siliconix

P-CHANNEL 60-V (D-S) 175C MOSFET

SQD50P06-15L_T4GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 60-V (D-S) 175C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 9,731

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15.5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5910 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	136W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
