Name: SQA444CEJW-T1_GE3
Brand: Vishay Siliconix
SKU: SQA444CEJW-T1_GE3
Price: 0.50 USD
Availability: InStock

REF: SQA444CEJW-T1_GE3 Vishay Siliconix

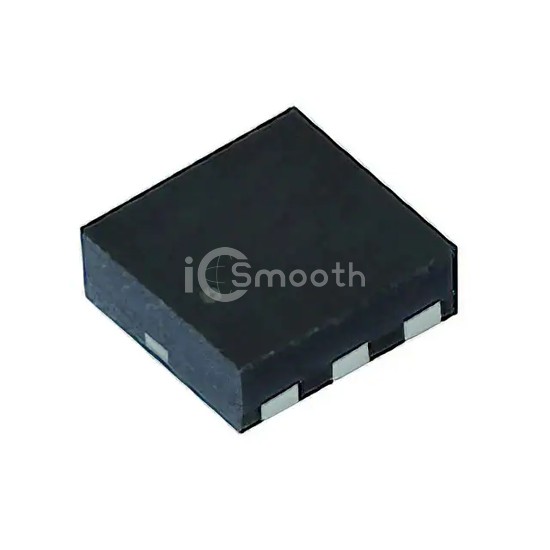

SQA444CEJW-T1_GE3

Vishay Siliconix

AUTOMOTIVE N-CHANNEL 60 V (D-S)

SQA444CEJW-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE N-CHANNEL 60 V (D-S). Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SC-70-6.

Request a Quote

In Stock: 3,365

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	39mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	530 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	13.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PowerPAK®SC-70W-6
Package / Case	PowerPAK® SC-70-6
