Name: SQA410CEJW-T1_GE3
Brand: Vishay Siliconix
SKU: SQA410CEJW-T1_GE3
Price: 0.45 USD
Availability: InStock

REF: SQA410CEJW-T1_GE3 Vishay Siliconix

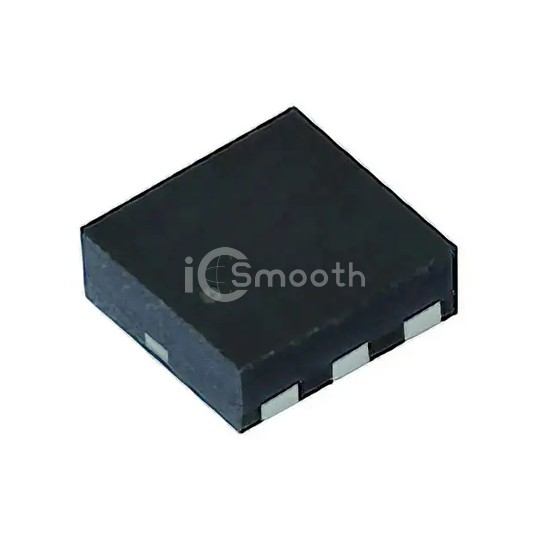

SQA410CEJW-T1_GE3

Vishay Siliconix

AUTOMOTIVE N-CHANNEL 20 V (D-S)

SQA410CEJW-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE N-CHANNEL 20 V (D-S). Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SC-70-6 Dual.

Request a Quote

In Stock: 18

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	28mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	525 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	13.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-70-6 Dual
Package / Case	PowerPAK® SC-70-6 Dual
