Name: SQ7414CENW-T1_GE3
Brand: Vishay Siliconix
SKU: SQ7414CENW-T1_GE3
Price: 1.00 USD
Availability: InStock

REF: SQ7414CENW-T1_GE3 Vishay Siliconix

SQ7414CENW-T1_GE3

Vishay Siliconix

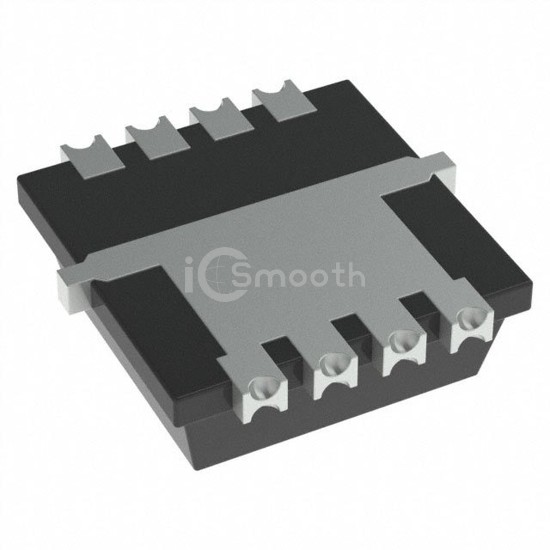

MOSFET N-CH 60V 18A PPAK1212-8W

SQ7414CENW-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 60V 18A PPAK1212-8W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® 1212-8W.

Datasheet Request a Quote

In Stock: 5,115

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	23mOhm @ 8.7A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1590 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	62W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8W
Package / Case	PowerPAK® 1212-8W
