Name: SQ4080EY-T1_BE3
Brand: Vishay Siliconix
SKU: SQ4080EY-T1_BE3
Price: 1.39 USD
Availability: InStock

REF: SQ4080EY-T1_BE3 Vishay Siliconix

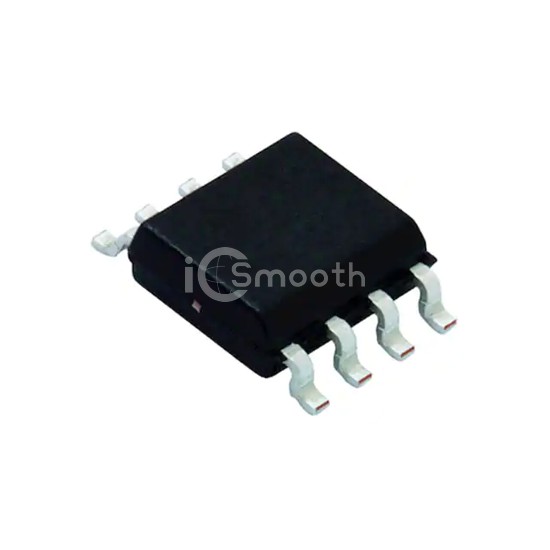

SQ4080EY-T1_BE3

Vishay Siliconix

N-CHANNEL 150-V (D-S) 175C MOSFE

SQ4080EY-T1_BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 150-V (D-S) 175C MOSFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,928

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	85mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1590 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	7.1W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
