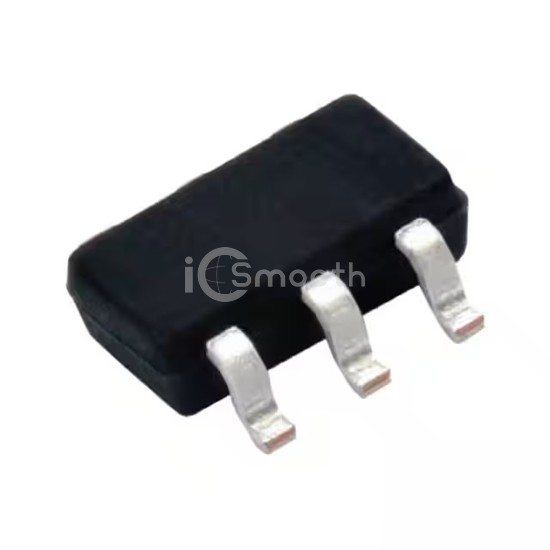

Name: SQ3989EV-T1_BE3
Brand: Vishay Siliconix
SKU: SQ3989EV-T1_BE3
Price: 0.63 USD
Availability: InStock

REF: SQ3989EV-T1_BE3 Vishay Siliconix

SQ3989EV-T1_BE3

Vishay Siliconix

DUAL P-CHANNEL 30-V (D-S) 175C M

SQ3989EV-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL P-CHANNEL 30-V (D-S) 175C M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6, power - max 1.67W (Tc).

Datasheet Request a Quote

In Stock: 1,159

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Rds On (Max) @ Id, Vgs	155mOhm @ 400mA, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	11.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.67W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-TSOP
