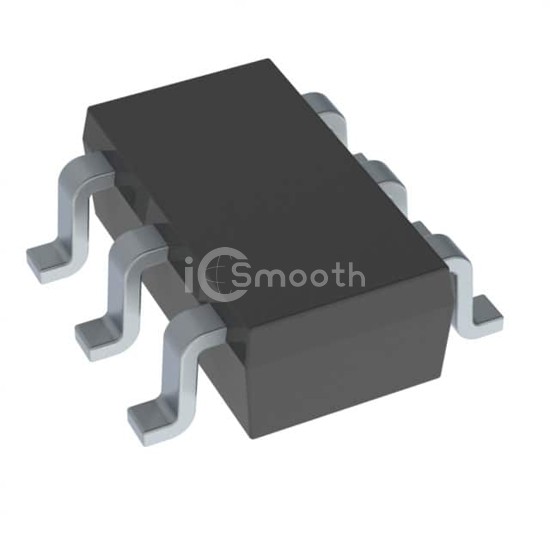

Name: SQ3469EV-T1_GE3
Brand: Vishay Siliconix
SKU: SQ3469EV-T1_GE3
Price: 0.72 USD
Availability: InStock

REF: SQ3469EV-T1_GE3 Vishay Siliconix

SQ3469EV-T1_GE3

Vishay Siliconix

MOSFET P-CH 20V 8A 6TSOP

SQ3469EV-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 8A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 4,004

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 6.7A, 10V
Vgs(th) (Max) @ Id	2.5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	27 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1020 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
