Name: SQ3419AEEV-T1_GE3
Brand: Vishay Siliconix
SKU: SQ3419AEEV-T1_GE3
Price: 0.74 USD
Availability: InStock

REF: SQ3419AEEV-T1_GE3 Vishay Siliconix

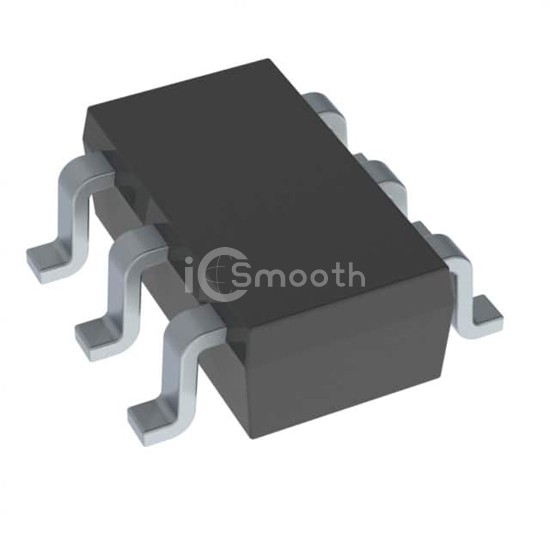

SQ3419AEEV-T1_GE3

Vishay Siliconix

MOSFET P-CHANNEL 40V 6.9A 6TSOP

SQ3419AEEV-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CHANNEL 40V 6.9A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 9,559

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	6.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	61mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.5 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	975 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
