Name: SQ2364EES-T1_BE3
Brand: Vishay Siliconix
SKU: SQ2364EES-T1_BE3
Price: 0.70 USD
Availability: InStock

REF: SQ2364EES-T1_BE3 Vishay Siliconix

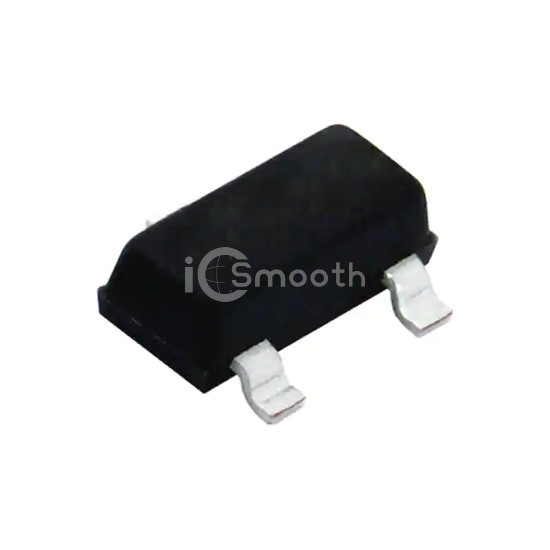

SQ2364EES-T1_BE3

Vishay Siliconix

N-CHANNEL 60-V (D-S) 175C MOSFET

SQ2364EES-T1_BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 60-V (D-S) 175C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 5,530

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	240mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	330 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
