Name: SIZF906DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZF906DT-T1-GE3
Price: 1.75 USD
Availability: InStock

REF: SIZF906DT-T1-GE3 Vishay Siliconix

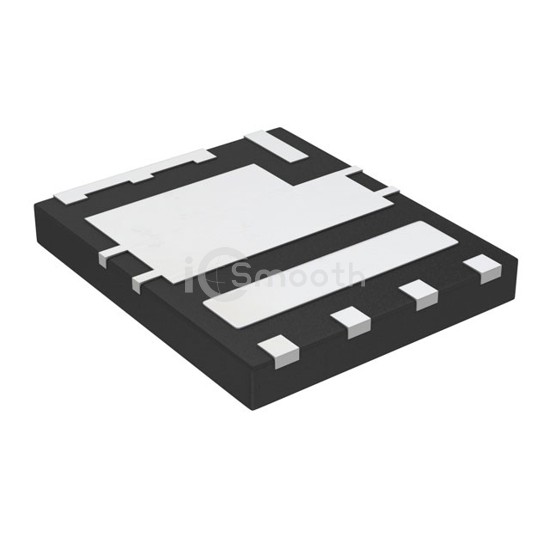

SIZF906DT-T1-GE3

Vishay Siliconix

MOSFET 2 N-CH 30V 60A POWERPAIR

SIZF906DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 30V 60A POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TA), package / case 8-PowerWDFN, power - max 38W (Tc), 83W (Tc).

Datasheet Request a Quote

In Stock: 6,000

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Rds On (Max) @ Id, Vgs	3.8mOhm @ 15A, 10V, 1.17mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	22nC @ 4.5V, 92nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	2000pF @ 15V, 8200pF @ 15V
Power - Max	38W (Tc), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
