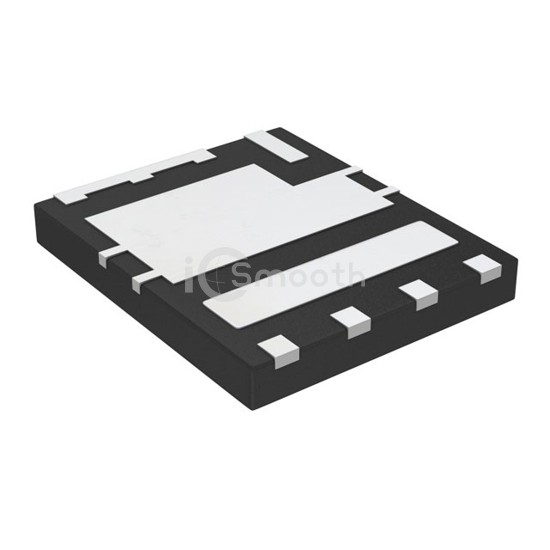

Name: SIZF906ADT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZF906ADT-T1-GE3
Price: 1.69 USD
Availability: InStock

REF: SIZF906ADT-T1-GE3 Vishay Siliconix

SIZF906ADT-T1-GE3

Vishay Siliconix

MOSFET DUAL N-CHAN 30V

SIZF906ADT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CHAN 30V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc).

Datasheet Request a Quote

In Stock: 1,945

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual), Schottky
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 60A (Tc), 52A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs	3.8mOhm @ 15A, 10V, 1.17mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	49nC @ 10V, 200nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2000pF @ 15V, 8200pF @ 15V
Power - Max	4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
