Name: SIZF640DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZF640DT-T1-GE3
Price: 2.94 USD
Availability: InStock

REF: SIZF640DT-T1-GE3 Vishay Siliconix

SIZF640DT-T1-GE3

Vishay Siliconix

DUAL N-CHANNEL 40 V (D-S) MOSFET

SIZF640DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 40 V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerDFN, power - max 4.2W (Ta), 62.5W (Tc).

Datasheet Request a Quote

In Stock: 5,118

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Common Source
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	41A (Ta), 159A (Tc)
Rds On (Max) @ Id, Vgs	1.37mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	106nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	5750pF @ 20V
Power - Max	4.2W (Ta), 62.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerDFN

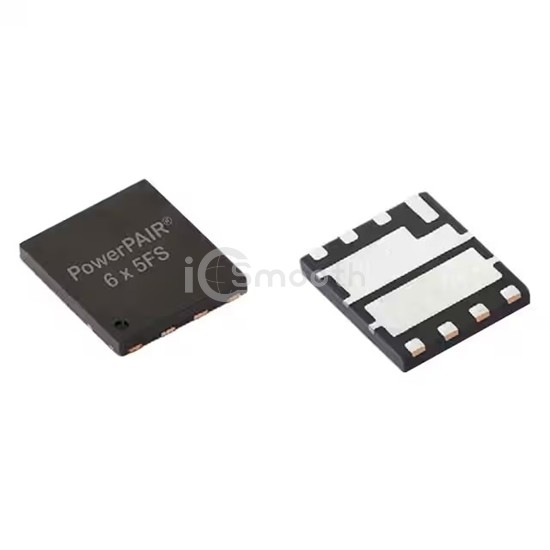

Supplier Device Package	PowerPAIR® 6x5FS
