Name: SIZF5302DT-T1-RE3
Brand: Vishay Siliconix
SKU: SIZF5302DT-T1-RE3
Price: 1.84 USD
Availability: InStock

REF: SIZF5302DT-T1-RE3 Vishay Siliconix

SIZF5302DT-T1-RE3

Vishay Siliconix

DUAL N-CHANNEL 30 V (D-S) MOSFET

SIZF5302DT-T1-RE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 30 V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-PowerPair™, power - max 3.8W (Ta), 48.1W (Tc).

Datasheet Request a Quote

In Stock: 1,387

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	28.1A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs	3.2mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	22.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1030pF @ 15V
Power - Max	3.8W (Ta), 48.1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

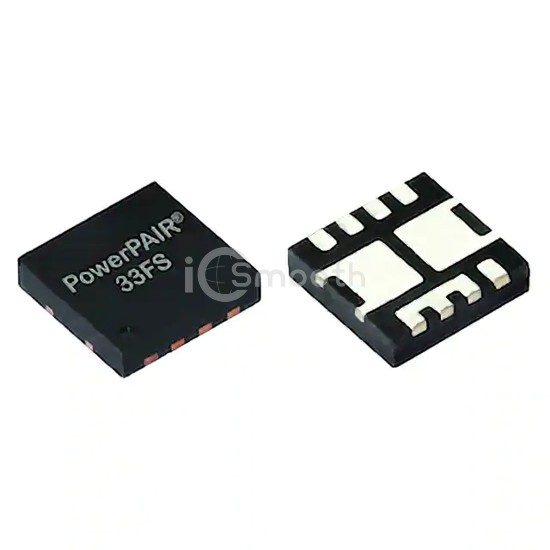

Package / Case	12-PowerPair™
Supplier Device Package	PowerPAIR® 3x3FS
