Name: SIZ998DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ998DT-T1-GE3
Price: 1.62 USD
Availability: InStock

REF: SIZ998DT-T1-GE3 Vishay Siliconix

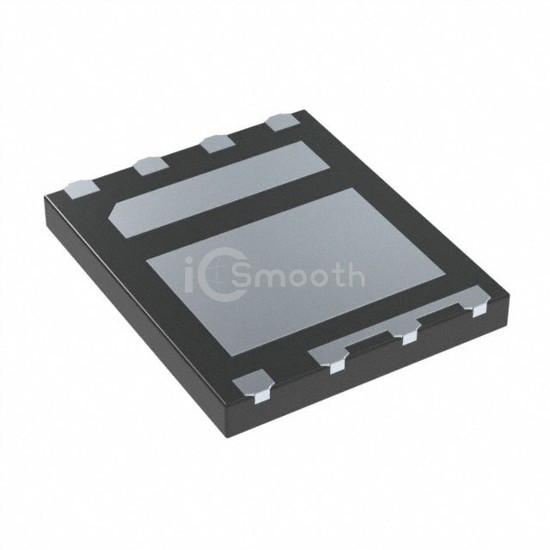

SIZ998DT-T1-GE3

Vishay Siliconix

MOSFET 2 N-CH 30V 8-POWERPAIR

SIZ998DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 30V 8-POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 20.2W, 32.9W.

Datasheet Request a Quote

In Stock: 4,222

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual), Schottky
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	20A (Tc), 60A (Tc)
Rds On (Max) @ Id, Vgs	6.7mOhm @ 15A, 10V, 2.8mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	8.1nC @ 4.5V, 19.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	930pF @ 15V, 2620pF @ 15V
Power - Max	20.2W, 32.9W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
