Name: SIZ900DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ900DT-T1-GE3
Availability: InStock

REF: SIZ900DT-T1-GE3 Vishay Siliconix

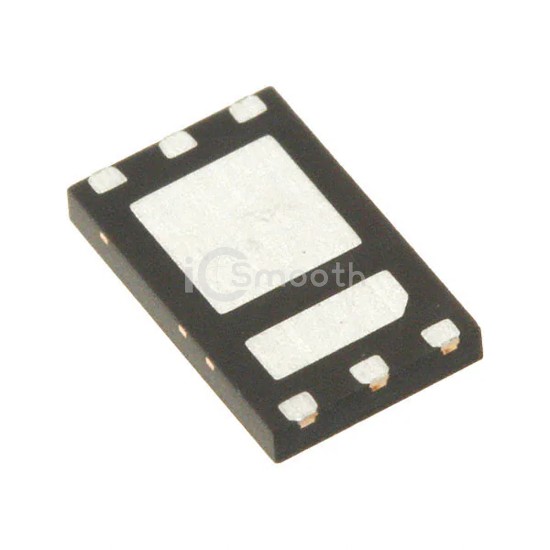

SIZ900DT-T1-GE3

MOSFET 2N-CH 30V 24A POWERPAIR

SIZ900DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 30V 24A POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerPair™, power - max 48W, 100W.

Datasheet Request a Quote

In Stock: 2,042

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	24A, 28A
Rds On (Max) @ Id, Vgs	7.2mOhm @ 19.4A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1830pF @ 15V
Power - Max	48W, 100W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-PowerPair™
Supplier Device Package	6-PowerPair™
