Name: SIZ728DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ728DT-T1-GE3
Availability: InStock

REF: SIZ728DT-T1-GE3 Vishay Siliconix

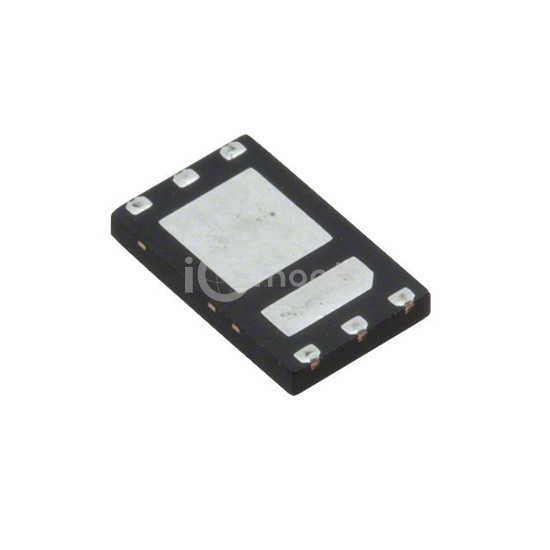

SIZ728DT-T1-GE3

MOSFET 2N-CH 25V 16A 6-POWERPAIR

SIZ728DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 25V 16A 6-POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerPair™, power - max 27W, 48W.

Datasheet Request a Quote

In Stock: 5,115

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	16A, 35A
Rds On (Max) @ Id, Vgs	7.7mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	890pF @ 12.5V
Power - Max	27W, 48W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-PowerPair™
Supplier Device Package	6-PowerPair™
