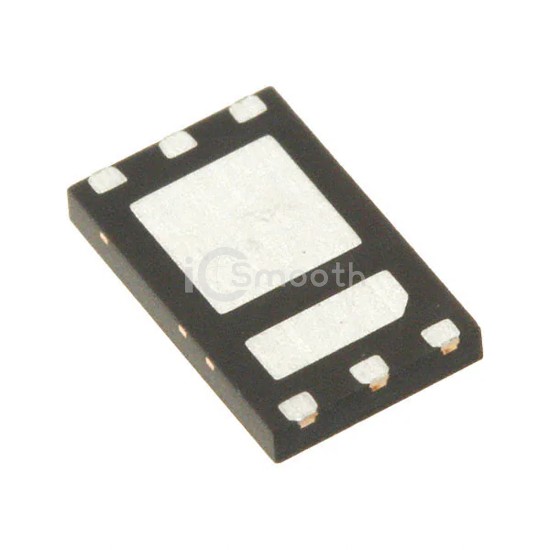

Name: SIZ700DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ700DT-T1-GE3
Availability: InStock

REF: SIZ700DT-T1-GE3 Vishay Siliconix

SIZ700DT-T1-GE3

MOSFET 2N-CH 20V 16A PPAK 1212-8

SIZ700DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 20V 16A PPAK 1212-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerPair™, power - max 2.36W, 2.8W.

Datasheet Request a Quote

In Stock: 1,732

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	16A
Rds On (Max) @ Id, Vgs	8.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1300pF @ 10V
Power - Max	2.36W, 2.8W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-PowerPair™
Supplier Device Package	6-PowerPair™
