Name: SIZ348DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ348DT-T1-GE3
Price: 1.09 USD
Availability: InStock

REF: SIZ348DT-T1-GE3 Vishay Siliconix

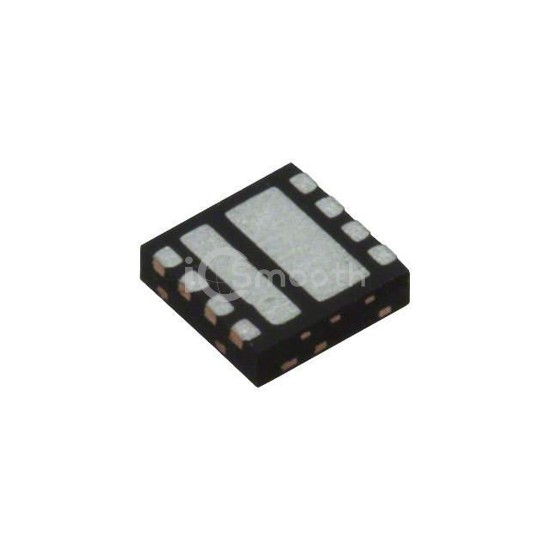

SIZ348DT-T1-GE3

Vishay Siliconix

MOSFET DUAL N-CHAN 30V POWERPAIR

SIZ348DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CHAN 30V POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.7W (Ta), 16.7W (Tc).

Datasheet Request a Quote

In Stock: 31

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs	7.12mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	18.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	820pF @ 15V
Power - Max	3.7W (Ta), 16.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power33 (3x3)
