Name: SIZ340ADT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ340ADT-T1-GE3
Price: 1.16 USD
Availability: InStock

REF: SIZ340ADT-T1-GE3 Vishay Siliconix

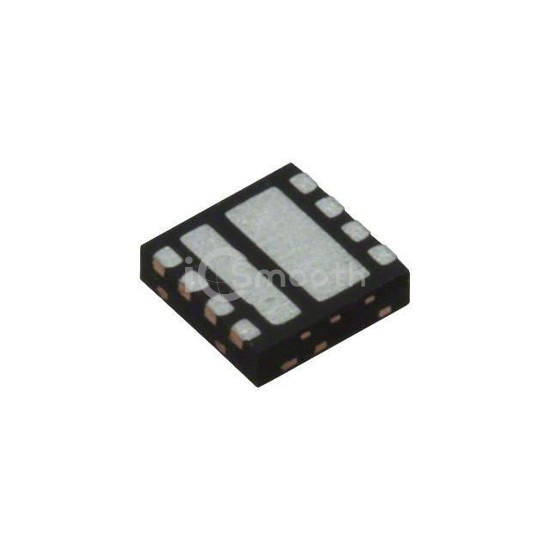

SIZ340ADT-T1-GE3

Vishay Siliconix

DUAL N-CHANNEL 30-V (D-S) MOSFET

SIZ340ADT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 30-V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.7W (Ta), 16.7W (Tc), 4.2W (Ta), 31W (Tc).

Datasheet Request a Quote

In Stock: 4,440

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15.7A (Ta), 33.4A (Tc), 25.4A (Ta), 69.7A (Tc)
Rds On (Max) @ Id, Vgs	9.4mOhm @ 10A, 10V, 4.29mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	12.2nC @ 10V, 27.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	580pF @ 15V, 1290pF @ 15V
Power - Max	3.7W (Ta), 16.7W (Tc), 4.2W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power33 (3x3)
