Name: SIZ328DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ328DT-T1-GE3
Price: 0.90 USD
Availability: InStock

REF: SIZ328DT-T1-GE3 Vishay Siliconix

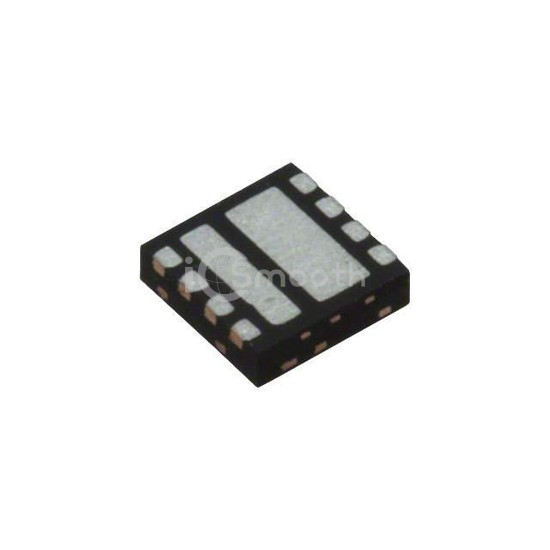

SIZ328DT-T1-GE3

Vishay Siliconix

MOSFET DUAL N-CHAN 25V POWERPAIR

SIZ328DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CHAN 25V POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc).

Datasheet Request a Quote

In Stock: 2,860

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	11.1A (Ta), 25.3A (Tc), 15A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs	15mOhm @ 5A, 10V, 10mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6.9nC @ 10V, 11.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	325pF @ 10V, 600pF @ 10V
Power - Max	2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power33 (3x3)
