Name: SIZ300DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ300DT-T1-GE3
Price: 1.18 USD
Availability: InStock

REF: SIZ300DT-T1-GE3 Vishay Siliconix

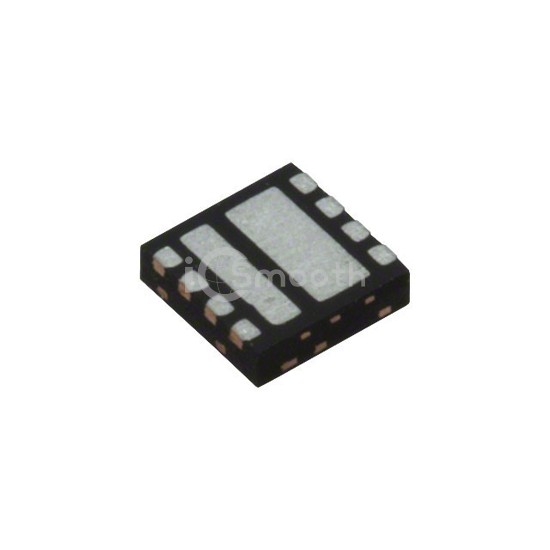

SIZ300DT-T1-GE3

Vishay Siliconix

MOSFET 2N-CH 30V 11A POWERPAIR

SIZ300DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 30V 11A POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 16.7W, 31W.

Datasheet Request a Quote

In Stock: 45

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	11A, 28A
Rds On (Max) @ Id, Vgs	24mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	400pF @ 15V
Power - Max	16.7W, 31W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair®
