Name: SIZ256DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ256DT-T1-GE3
Price: 1.37 USD
Availability: InStock

REF: SIZ256DT-T1-GE3 Vishay Siliconix

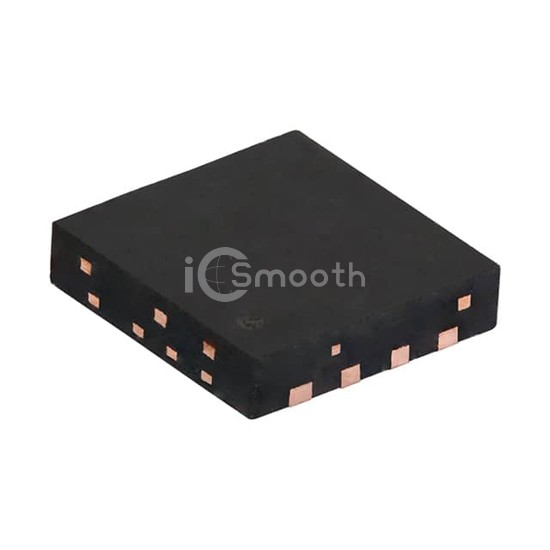

SIZ256DT-T1-GE3

Vishay Siliconix

DUAL N-CHANNEL 70 V (D-S) MOSFET

SIZ256DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 70 V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).

Datasheet Request a Quote

In Stock: 4,332

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	70V
Current - Continuous Drain (Id) @ 25°C	11.5A (Ta), 31.8A (Tc)
Rds On (Max) @ Id, Vgs	17.6mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1060pF @ 35V
Power - Max	4.3W (Ta), 33W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (3.3x3.3)
