Name: SIZ240DT-T1-GE3
Brand: Vishay Siliconix
SKU: SIZ240DT-T1-GE3
Price: 1.37 USD
Availability: InStock

REF: SIZ240DT-T1-GE3 Vishay Siliconix

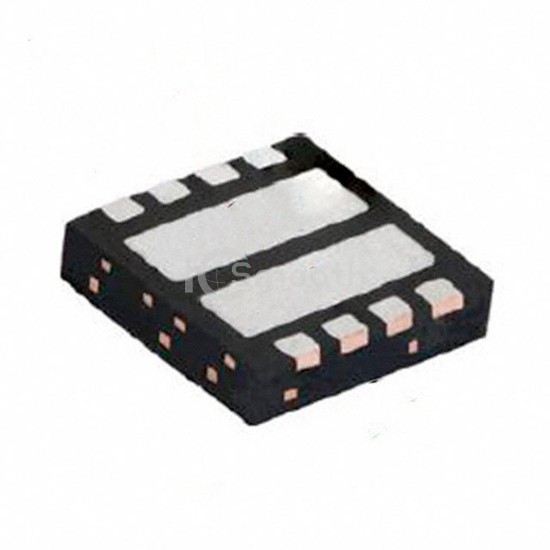

SIZ240DT-T1-GE3

Vishay Siliconix

MOSFET DUAL N-CH 40V POWERPAIR 3

SIZ240DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH 40V POWERPAIR 3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).

Datasheet Request a Quote

In Stock: 5,734

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	17.2A (Ta), 48A (Tc), 16.9A (Ta), 47A (Tc)
Rds On (Max) @ Id, Vgs	8.05mOhm @ 10A, 10V, 8.41mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	23nC @ 10V, 22nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1180pF @ 20V, 1070pF @ 20V
Power - Max	4.3W (Ta), 33W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (3.3x3.3)
