Name: SIUD401ED-T1-GE3
Brand: Vishay Siliconix
SKU: SIUD401ED-T1-GE3
Price: 0.45 USD
Availability: InStock

REF: SIUD401ED-T1-GE3 Vishay Siliconix

SIUD401ED-T1-GE3

Vishay Siliconix

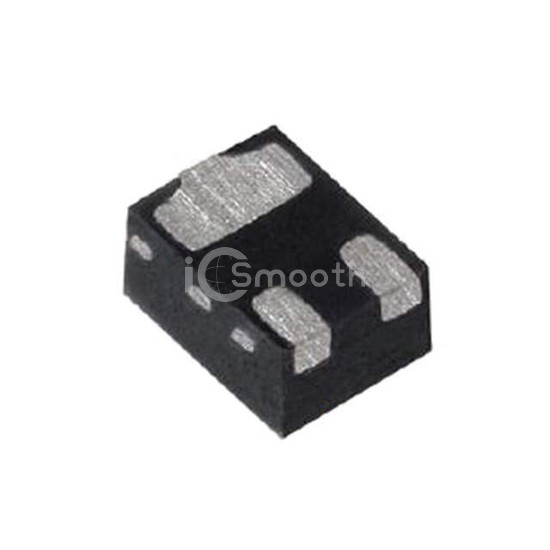

MOSFET P-CH 30V 500MA PPAK 0806

SIUD401ED-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 30V 500MA PPAK 0806. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 0806.

Datasheet Request a Quote

In Stock: 2,653

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.573Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	33 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 0806
Package / Case	PowerPAK® 0806
