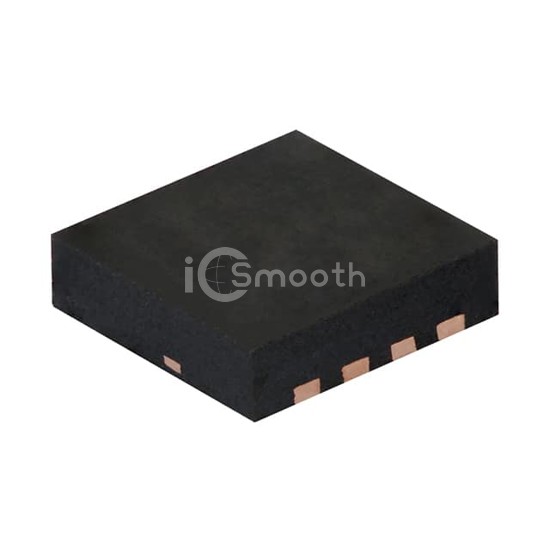

Name: SISS52DN-T1-GE3
Brand: Vishay Siliconix
SKU: SISS52DN-T1-GE3
Price: 1.11 USD
Availability: InStock

REF: SISS52DN-T1-GE3 Vishay Siliconix

SISS52DN-T1-GE3

Vishay Siliconix

MOSFET N-CH 30V 47.1A/162A PPAK

SISS52DN-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 47.1A/162A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 1212-8SH.

Datasheet Request a Quote

In Stock: 5,013

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	47.1A (Ta), 162A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V

Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	2950 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	4.8W (Ta), 57W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8SH
Package / Case	PowerPAK® 1212-8SH
