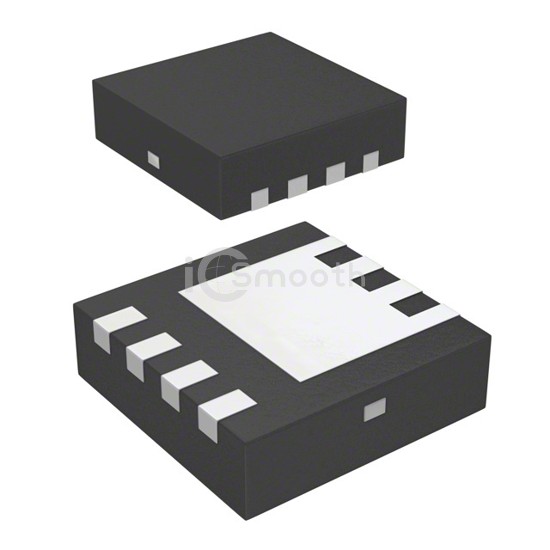

Name: SISH617DN-T1-GE3
Brand: Vishay Siliconix
SKU: SISH617DN-T1-GE3
Price: 1.00 USD
Availability: InStock

REF: SISH617DN-T1-GE3 Vishay Siliconix

SISH617DN-T1-GE3

Vishay Siliconix

MOSFET P-CH 30V 13.9A/35A PPAK

SISH617DN-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 30V 13.9A/35A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 1212-8SH.

Datasheet Request a Quote

In Stock: 2,420

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	13.9A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12.3mOhm @ 13.9A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8SH
Package / Case	PowerPAK® 1212-8SH
