Name: SISF00DN-T1-GE3
Brand: Vishay Siliconix
SKU: SISF00DN-T1-GE3
Price: 1.54 USD
Availability: InStock

REF: SISF00DN-T1-GE3 Vishay Siliconix

SISF00DN-T1-GE3

Vishay Siliconix

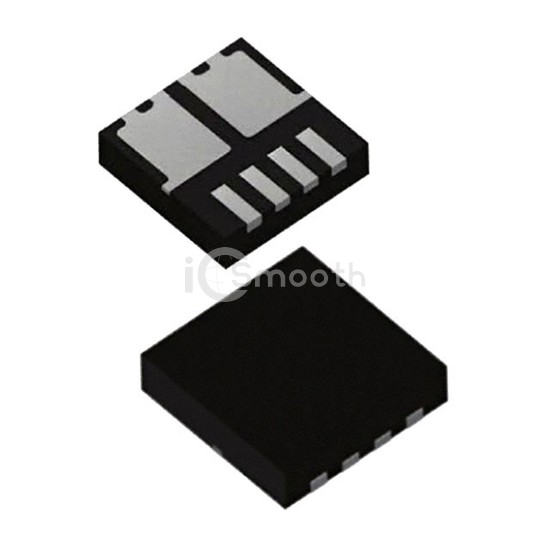

MOSFET DUAL N-CH 30V POWERPAK 12

SISF00DN-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH 30V POWERPAK 12. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 1212-8SCD, power - max 69.4W (Tc).

Datasheet Request a Quote

In Stock: 721

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Rds On (Max) @ Id, Vgs	5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2700pF @ 15V
Power - Max	69.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 1212-8SCD
Supplier Device Package	PowerPAK® 1212-8SCD
