Name: SIRA58ADP-T1-RE3
Brand: Vishay Siliconix
SKU: SIRA58ADP-T1-RE3
Price: 0.57 USD
Availability: InStock

REF: SIRA58ADP-T1-RE3 Vishay Siliconix

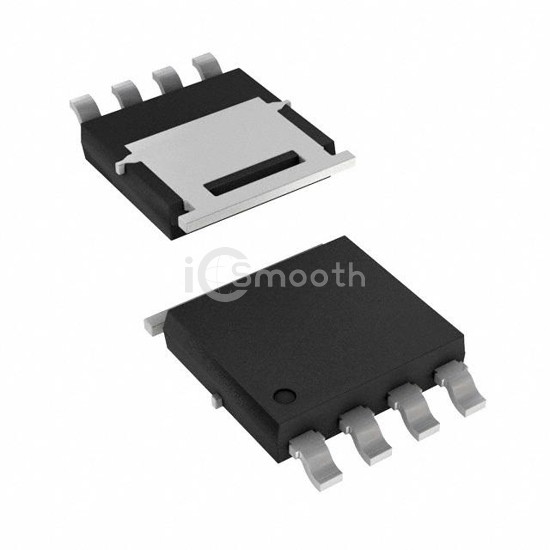

SIRA58ADP-T1-RE3

Vishay Siliconix

MOSFET N-CH 40V 32.3A/109A PPAK

SIRA58ADP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 40V 32.3A/109A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 4,151

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	32.3A (Ta), 109A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.65mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	61 nC @ 10 V

Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	3030 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 56.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
