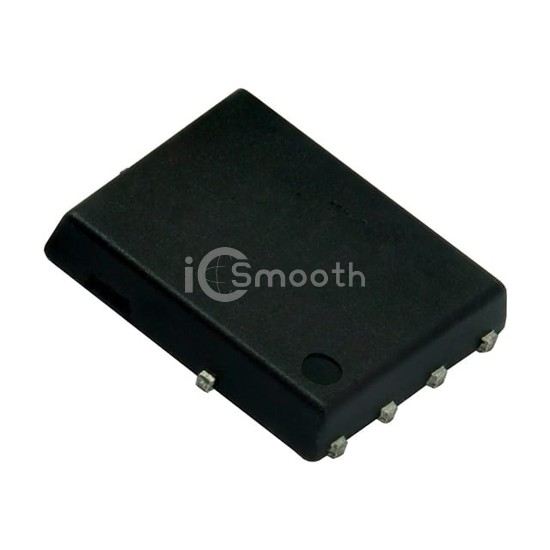

Name: SIR876BDP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR876BDP-T1-RE3
Price: 1.37 USD
Availability: InStock

REF: SIR876BDP-T1-RE3 Vishay Siliconix

SIR876BDP-T1-RE3

Vishay Siliconix

N-CHANNEL 100-V (D-S) MOSFET POW

SIR876BDP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 100-V (D-S) MOSFET POW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 6,331

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	13.6A (Ta), 51.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.8mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3040 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 71.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
