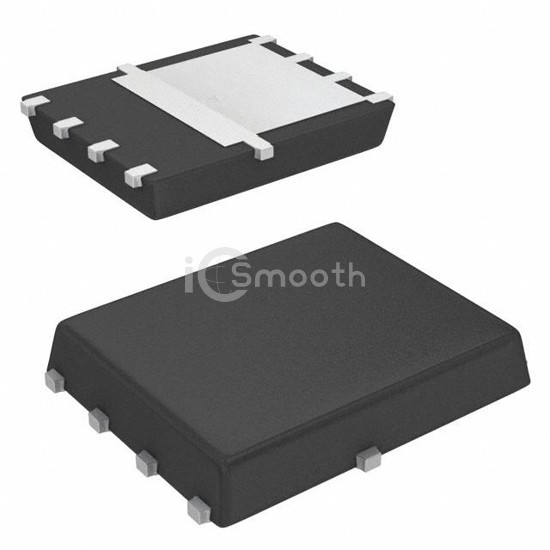

Name: SIR800ADP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR800ADP-T1-RE3
Price: 0.97 USD
Availability: InStock

REF: SIR800ADP-T1-RE3 Vishay Siliconix

SIR800ADP-T1-RE3

Vishay Siliconix

MOSFET N-CH 20V 50.2A/177A PPAK

SIR800ADP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V 50.2A/177A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 7,935

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	50.2A (Ta), 177A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.35mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	+12V, -8V
Input Capacitance (Ciss) (Max) @ Vds	3415 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 62.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
