Name: SIR632DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR632DP-T1-RE3
Price: 1.46 USD
Availability: InStock

REF: SIR632DP-T1-RE3 Vishay Siliconix

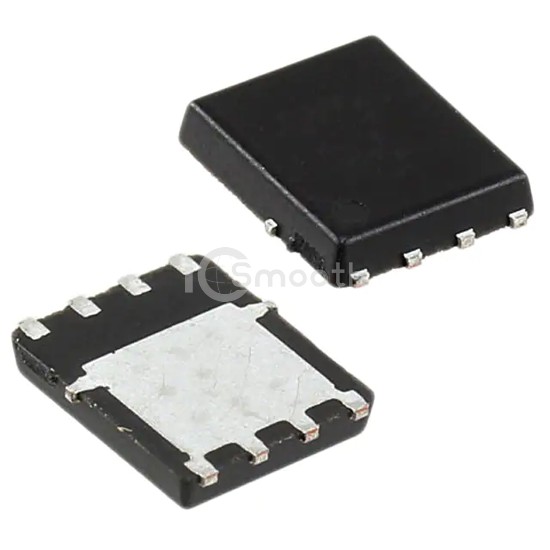

SIR632DP-T1-RE3

Vishay Siliconix

MOSFET N-CH 150V 29A PPAK SO-8

SIR632DP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 150V 29A PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 2,098

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	34.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 7.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	740 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	69.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
