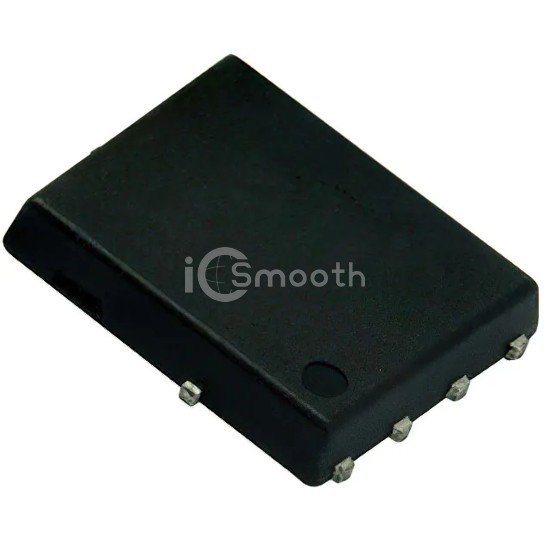

Name: SIR572DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR572DP-T1-RE3
Price: 2.12 USD
Availability: InStock

REF: SIR572DP-T1-RE3 Vishay Siliconix

SIR572DP-T1-RE3

Vishay Siliconix

N-CHANNEL 150 V (D-S) MOSFET POW

SIR572DP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 150 V (D-S) MOSFET POW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 8,149

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	14.8A (Ta), 59.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	10.8mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	54 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2733 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	5.7W (Ta), 92.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
