Name: SIR5102DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR5102DP-T1-RE3
Price: 3.20 USD
Availability: InStock

REF: SIR5102DP-T1-RE3 Vishay Siliconix

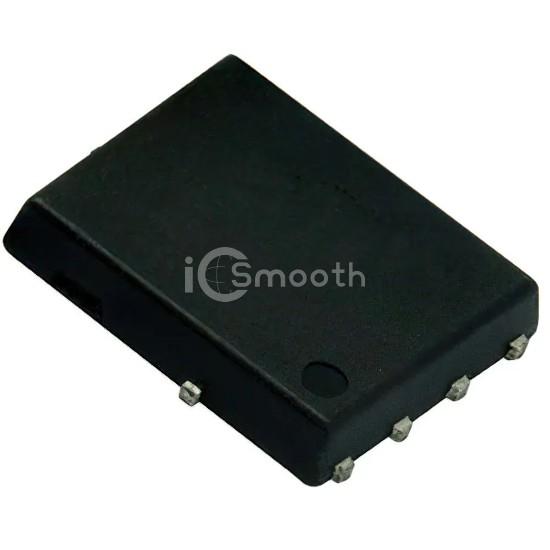

SIR5102DP-T1-RE3

Vishay Siliconix

N-CHANNEL 100 V (D-S) MOSFET POW

SIR5102DP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 100 V (D-S) MOSFET POW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 1,934

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2850 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	6.25W (Ta), 104W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
