Name: SIR500DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR500DP-T1-RE3
Price: 1.72 USD
Availability: InStock

REF: SIR500DP-T1-RE3 Vishay Siliconix

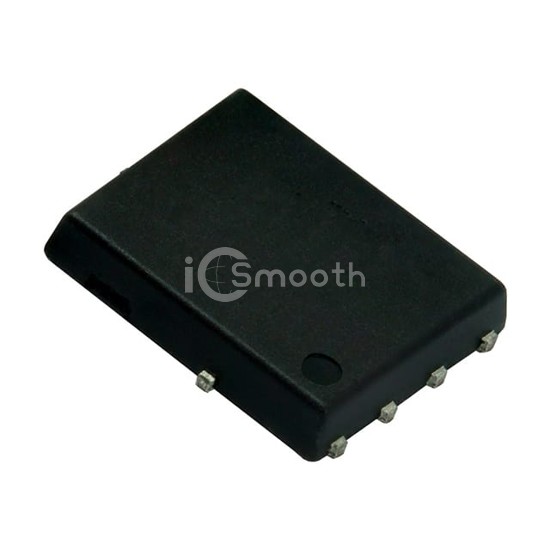

SIR500DP-T1-RE3

Vishay Siliconix

N-CHANNEL 30 V (D-S) 150C MOSFET

SIR500DP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 30 V (D-S) 150C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 2,016

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	85.9A (Ta), 350.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.47mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 10 V

Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	8960 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	6.25W (Ta), 104.1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
