Name: SIR4604LDP-T1-GE3
Brand: Vishay Siliconix
SKU: SIR4604LDP-T1-GE3
Price: 1.50 USD
Availability: InStock

REF: SIR4604LDP-T1-GE3 Vishay Siliconix

SIR4604LDP-T1-GE3

Vishay Siliconix

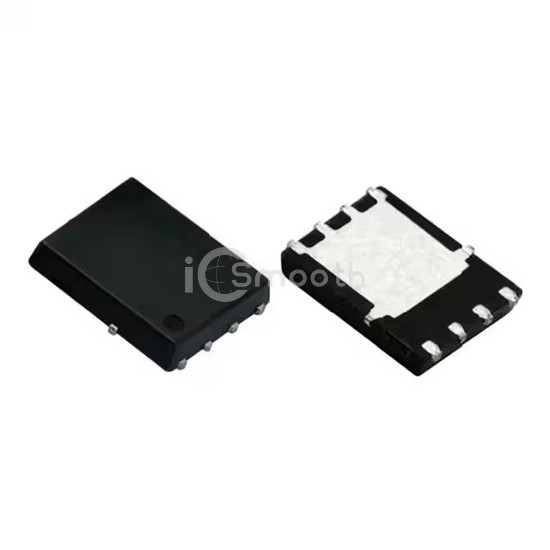

N-CHANNEL 60 V (D-S) MOSFET POWE

SIR4604LDP-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 60 V (D-S) MOSFET POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 9,537

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	15.6A (Ta), 51A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	28 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1180 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.9W (Ta), 41.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
