Name: SIR4602LDP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR4602LDP-T1-RE3
Price: 1.00 USD
Availability: InStock

REF: SIR4602LDP-T1-RE3 Vishay Siliconix

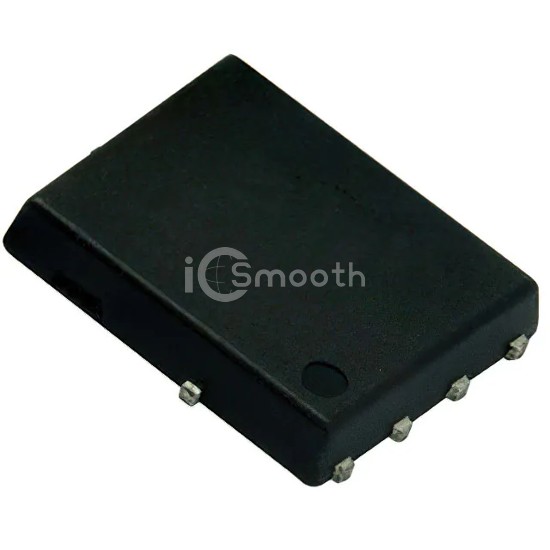

SIR4602LDP-T1-RE3

Vishay Siliconix

POWERPAK SO-8, 8.8 M @ 10V, 12.5

SIR4602LDP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. POWERPAK SO-8, 8.8 M @ 10V, 12.5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Request a Quote

In Stock: 5,910

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	15.2A (Ta), 52.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.8mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1185 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 43W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
