Name: SIR403EDP-T1-GE3
Brand: Vishay Siliconix
SKU: SIR403EDP-T1-GE3
Price: 0.43 USD
Availability: InStock

REF: SIR403EDP-T1-GE3 Vishay Siliconix

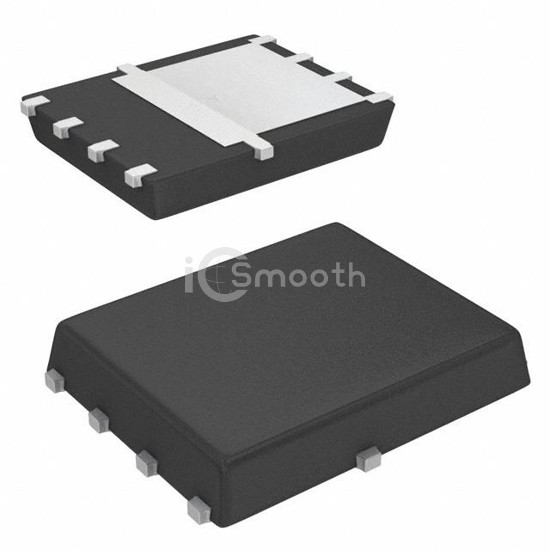

SIR403EDP-T1-GE3

Vishay Siliconix

MOSFET P-CH 30V 40A PPAK SO-8

SIR403EDP-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 30V 40A PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 1,658

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	153 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	4620 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 56.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
