Name: SIR122LDP-T1-RE3
Brand: Vishay Siliconix
SKU: SIR122LDP-T1-RE3
Price: 1.29 USD
Availability: InStock

REF: SIR122LDP-T1-RE3 Vishay Siliconix

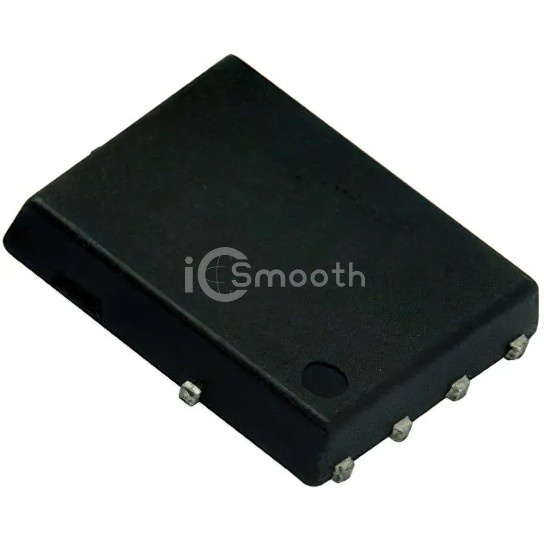

SIR122LDP-T1-RE3

Vishay Siliconix

N-CHANNEL 80-V (D-S) MOSFET POWE

SIR122LDP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 80-V (D-S) MOSFET POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Request a Quote

In Stock: 9,032

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	17.2A (Ta), 62.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.35mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2380 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 65.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
