SIP2204EMP-T1-GE4

In Stock: 9,000

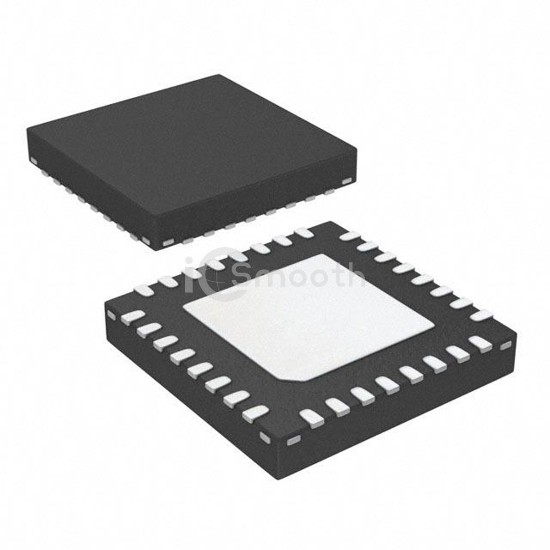

SIP2204EMP-T1-GE4 - Vishay Siliconix - PMIC - Full, Half-Bridge Drivers
REF: SIP2204EMP-T1-GE4 Vishay Siliconix
SIP2204EMP-T1-GE4

Vishay Siliconix

QUAD CHANNEL, HIGH FREQUENCY POW

SIP2204EMP-T1-GE4 is a PMIC - Full, Half-Bridge Drivers manufactured by Vishay Siliconix. QUAD CHANNEL, HIGH FREQUENCY POW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 24V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,000

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)350mOhm LS, 550mOhm HS
Current - Output / Channel500mA
Current - Peak Output2A
Voltage - Supply10V ~ 24V
Voltage - Load-
Operating Temperature-40°C ~ 125°C (TA)
Features-
Fault Protection-
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
