Name: SIJH800E-T1-GE3
Brand: Vishay Siliconix
SKU: SIJH800E-T1-GE3
Price: 5.07 USD
Availability: InStock

REF: SIJH800E-T1-GE3 Vishay Siliconix

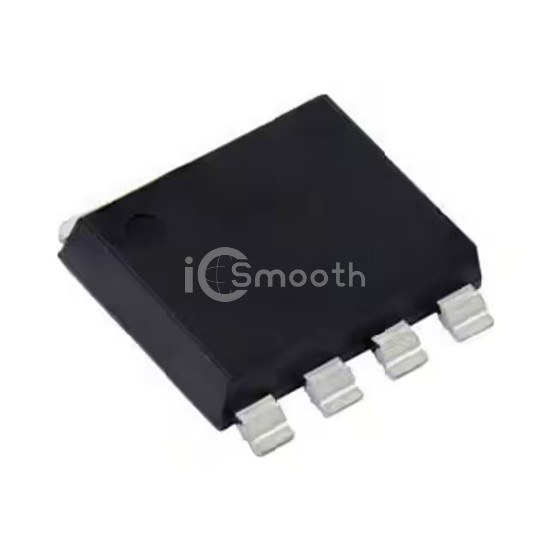

SIJH800E-T1-GE3

Vishay Siliconix

N-CHANNEL 80-V (D-S) 175C MOSFET

SIJH800E-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 80-V (D-S) 175C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® 8 x 8.

Datasheet Request a Quote

In Stock: 3,782

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	29A (Ta), 299A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	1.55mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	210 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10230 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 333W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	PowerPAK® 8 x 8
