Name: SIJA72ADP-T1-GE3
Brand: Vishay Siliconix
SKU: SIJA72ADP-T1-GE3
Price: 0.47 USD
Availability: InStock

REF: SIJA72ADP-T1-GE3 Vishay Siliconix

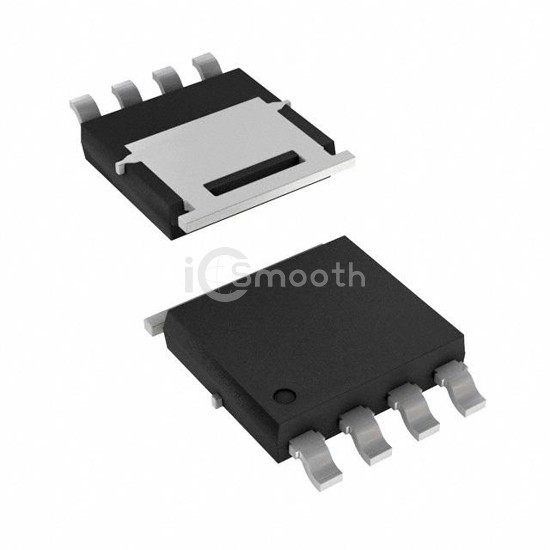

SIJA72ADP-T1-GE3

Vishay Siliconix

MOSFET N-CH 40V 27.9A/96A PPAK

SIJA72ADP-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 40V 27.9A/96A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 9,656

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	27.9A (Ta), 96A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.42mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	2530 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	4.8W (Ta), 56.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
