Name: SIJA22DP-T1-GE3
Brand: Vishay Siliconix
SKU: SIJA22DP-T1-GE3
Price: 1.45 USD
Availability: InStock

REF: SIJA22DP-T1-GE3 Vishay Siliconix

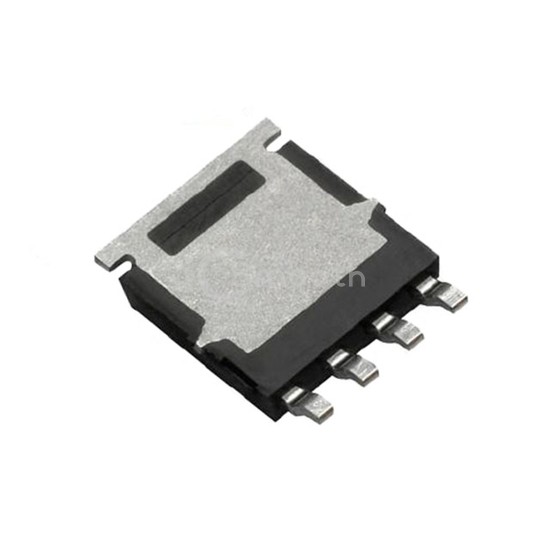

SIJA22DP-T1-GE3

Vishay Siliconix

MOSFET N-CH 25V 64A/201A PPAK

SIJA22DP-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 25V 64A/201A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 7,122

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	64A (Ta), 201A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	0.74mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	125 nC @ 10 V

Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	6500 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	4.8W (Ta), 48W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
