Name: SIHW61N65EF-GE3
Brand: Vishay Siliconix
SKU: SIHW61N65EF-GE3
Price: 10.07 USD
Availability: InStock

REF: SIHW61N65EF-GE3 Vishay Siliconix

SIHW61N65EF-GE3

Vishay Siliconix

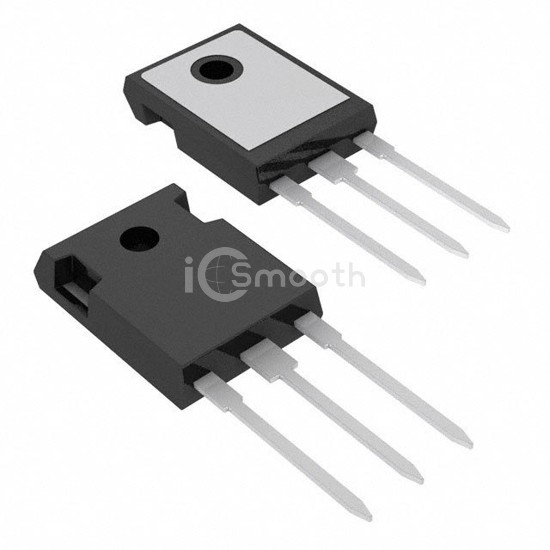

MOSFET N-CH 650V 64A TO247AD

SIHW61N65EF-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 650V 64A TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 7,288

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	47mOhm @ 30.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	371 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7407 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AD
Package / Case	TO-247-3
