Name: SIHU6N62E-GE3
Brand: Vishay Siliconix
SKU: SIHU6N62E-GE3
Price: 1.73 USD
Availability: InStock

REF: SIHU6N62E-GE3 Vishay Siliconix

SIHU6N62E-GE3

Vishay Siliconix

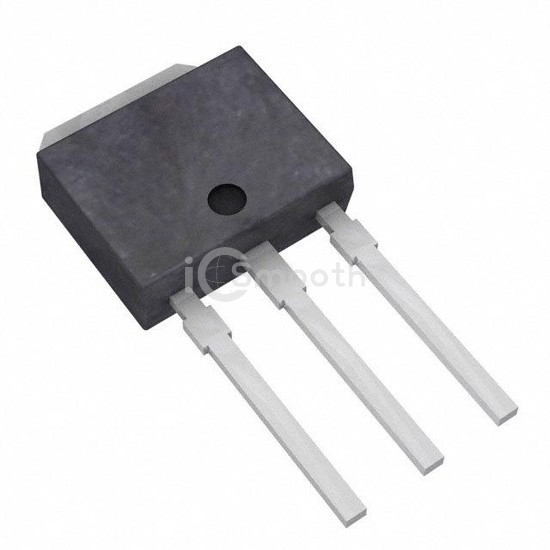

MOSFET N-CH 620V 6A IPAK

SIHU6N62E-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 620V 6A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 3,094

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	620 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	900mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	578 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK (TO-251)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
