Name: SIHLU024-GE3
Brand: Vishay Siliconix
SKU: SIHLU024-GE3
Price: 0.88 USD
Availability: InStock

REF: SIHLU024-GE3 Vishay Siliconix

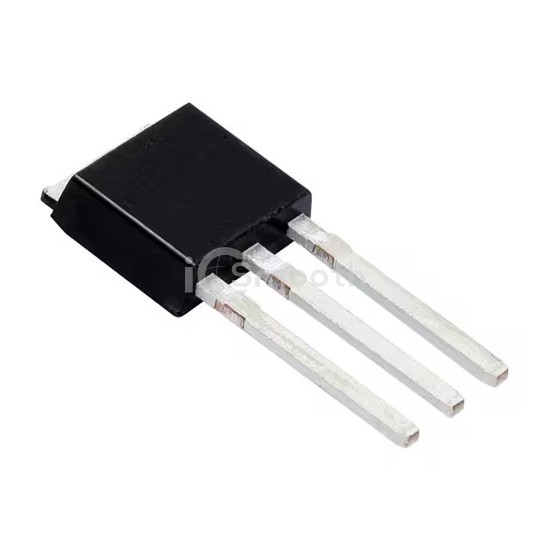

SIHLU024-GE3

LOGIC MOSFET N-CHANNEL 60V

SIHLU024-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. LOGIC MOSFET N-CHANNEL 60V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 2,687

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 5V
Rds On (Max) @ Id, Vgs	100mOhm @ 8.4A, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251AA
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
