Name: SIHJ6N65E-T1-GE3
Brand: Vishay Siliconix
SKU: SIHJ6N65E-T1-GE3
Price: 2.23 USD
Availability: InStock

REF: SIHJ6N65E-T1-GE3 Vishay Siliconix

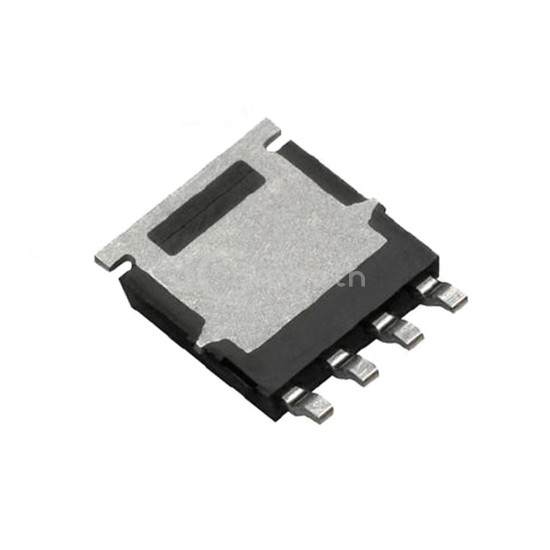

SIHJ6N65E-T1-GE3

Vishay Siliconix

MOSFET N-CH 650V 5.6A PPAK SO-8

SIHJ6N65E-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 650V 5.6A PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 3,962

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	5.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	868mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	596 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	74W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
