Name: SIHH14N65E-T1-GE3
Brand: Vishay Siliconix
SKU: SIHH14N65E-T1-GE3
Price: 5.52 USD
Availability: InStock

REF: SIHH14N65E-T1-GE3 Vishay Siliconix

SIHH14N65E-T1-GE3

Vishay Siliconix

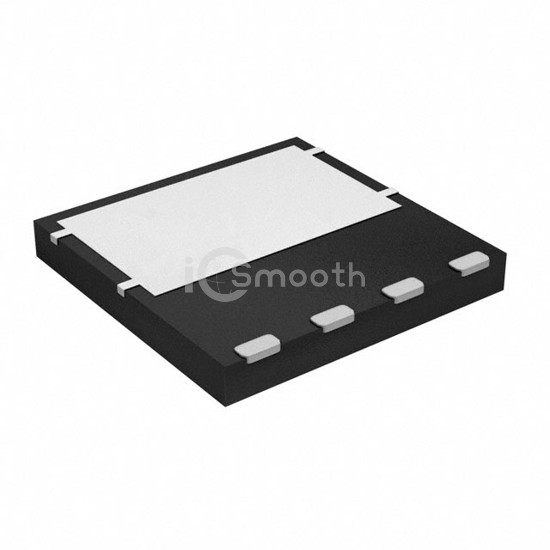

MOSFET N-CH 650V 15A PPAK 8 X 8

SIHH14N65E-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 650V 15A PPAK 8 X 8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,841

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	260mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	96 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1712 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	8-PowerTDFN
